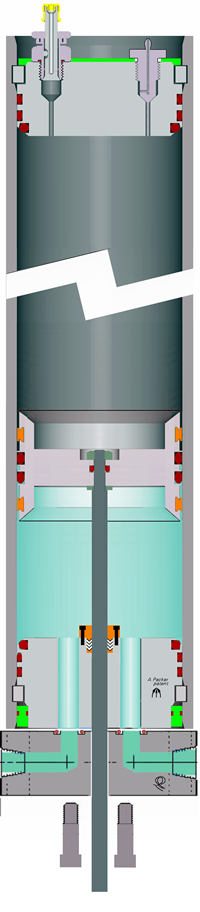

An IndAcc piston type accumulator has a light weight piston where the dynamic seals are aligned with the piston center and where both the gas and liquid skirt ends have graphite filled Teflon guide rings. The IndAcc has polished rod attached to the piston center, passing through a chevron stuffing box seal, centrally of the liquid end plug; that enables volume stored to be known.

HydroTrole piston accumulators have a sealing geometry that ensures pre-charge gas retention with immeasurable loss over an MTBF (meantime between failure) design criteria of 32 million cycles, with minimum hysteresis break out stiction achieved by placing the dynamic seals so closely adjacent each other that seal deflection ensures that the lubricant held between the seals instantly reaches the same pressure as the oil and the pre-charge gas. All pistons with so lightly loaded dynamic seals are prevented from experiencing a differential pressure at gas end and at liquid end of stroke by a static encapsulated shut-down seal than face seals against the end of the piston skirt on each side. Piston accumulators are recommended because when they do begin to go down it is gradual progressive, and determinate. They are recommended for emergency standby power.

Main Features: Solid Light-Weight Piston, Close-Coupled Seals, Dual Graphite-Filled Bearing Strips for Low Stiction, Various Seal Elastomers, Zero Leakage When Shut Down, Super Fast R Locking, Flow-Thru Port Facility.



Part Numbers / Sizing

Small
Ind-1.1Lt-80-Br210-N-1/2"BSP-SS
Ind-2.1Lt-80-Br210-N-1/2"BSP-SS
Ind-3.1Lt-100-Br210-N-3/4"BSP-SS
Ind-4.7Lt-100-Br210-N-3/4"BSP-SS
Ind-6.5Lt-100-Br210-N-1/2"BSP-SS

Medium
Ind-10Lt-125-Br210-N-1/2"BSP-SS
Ind-15Lt-125-Br210-N-1/2"BSP-SS
Ind-20Lt-150-Br210-N-1/2"BSP-SS
Ind-30Lt-150-Br210-N-1/2"BSP-SS

Large
Ind-40Lt-185-Br210-N-1/2"BSP-SS
Ind-50Lt-185-Br210-N-1/2"BSP-SS
Ind-60Lt-200-Br210-N-1/2"BSP-SS
Ind-80Lt-200-Br210-N-1/2"BSP-SS



Information About: Part Numbers / Sizing

  • The number that is followed by the letters "Lt" denotes the number of liters nominal volume. There are 61 cubic inches in one liter.








IndAcc Piston Accumulator Applications

IndAcc Piston Accumulator ApplicationsApplication(s) or example(s) that save peak hydraulic horsepower energy levels and reduce capital costs for pumping systems, whilst increasing control precision.

In applications as discussed (see: PistoLite) the addition of one IndAcc to the system enables pump cascade control. Pump cascade control is the use of multiple inexpensive fixed displacement fixed rpm low cost unsophisticated highly reliable pumps to produce infinitely variable flow rate when HydroTrole IndAcc accumulators are used. When the demand from the system is at a higher rate then can be produced by one pump the IndAcc will begin to discharge before the PistoLite discharges; this is because the anular area around the IndAcc tail rod is less than the area of the gas side of the piston. therefore when the gas side of the IndAcc and the gas sides of the PistoLite accumulators are interconnected and the hydraulic oil side of the PistoLite accumulators and the hydraulic oil side of the IndAcc are interconnected the differential area of the IndAcc ensures that it begins to discharge first. Immediately the IndAcc begins to discharge, its tail rod trips on another pump by closing its unloading valve. Additional pumps will be brought online sequentially in the same way if system demand is still exceeding rate of supply.

Conversely when more pumps then are necessary for rate of supply are running the accumulators will refill and as they do the IndAcc will retract putting more pumps into a no pressure, recirculation mode. These IndAcc plus PistoLite packages systems known as acc-packs do not give stepped rates of flow because the accumulator behavior provides smooth transition between any numbers of pumps running at one time. An IndAcc provides pump cascade control ensuring infinitely variable flow rate and minimum horsepower usage.

IndAcc Piston Accumulator Applications








IndAcc Piston Accumulator Assembly

HydroTrole accumulators are easy and simple to assemble without specialized tooling or equipment; including spares, repairs, and recertification capability.
